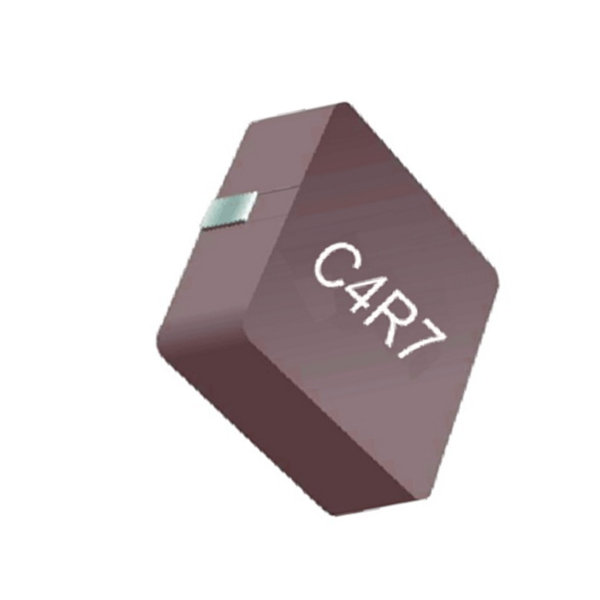

Forewell Integrated Circuit Inductor One Piece Alloy Powder Smd Coil Inductor

SMD Power Inductor Original Smd Alloy Powder Molded Chip Integrated Circuit Ic 1.0uH~4.7uH

Features:

• Magnetically shielded construction, low DC resistance；
• The use of magnetic iron powder ensure capability for large current；
• Low audible core noise；
• Ideal for DC-DC converter applications in hand held personal computer and etc；
• Frequency Range: up to 30MHz；
• RoHS HF compliant

Applications:

• Portable gaming devices,Telecomm base stations.
• Next-generation mobile devices with multifunction such as adding color TV and digital movie cameras；
• Flat-screen TVs, blue-ray disc recorders, set top box；
• Notebooks, desktop computers, servers, graphic cards；
• Portable gaming devices, personal navigation systems, personal multimedia devices；
• Automotive systems；
• Telecomm base stations.
• Communications

Specification:

Dimensions

Specification

Packaging Information

NOTES:

• DC current (Idc) that will cause an approximate △T of 40℃
• DC current (Isat) that will cause Lo to drop approximately 20%
• All test data is referenced to 25℃ ambient
• Operating Temperature Range -55℃ to +150℃
• The part temperature (ambient + temp rise) should not exceed 150℃ under the worst operating conditions.
• Circuit design, component placement, PWB trace size and thickness, airflow and other cooling provisions
• all affect the part temperature. Part temperature should be verified in the end application.

Packaging Quantity(pcs):

RFQ:

Do you provide ODM and OEM?

Yes, ODM and OEM are welcomed.

What information you need supply for making coil.

Supply drawing is best, or tell us the size, inductance, resistance, Q value, OD, ID, Turns, thickness, etc.

Can we customize?

Yes, we specialize in providing customized services.
